Fully Automated Cold Forge Terminal Making Line
High-efficiency, automatic terminal production line engineered by SST.

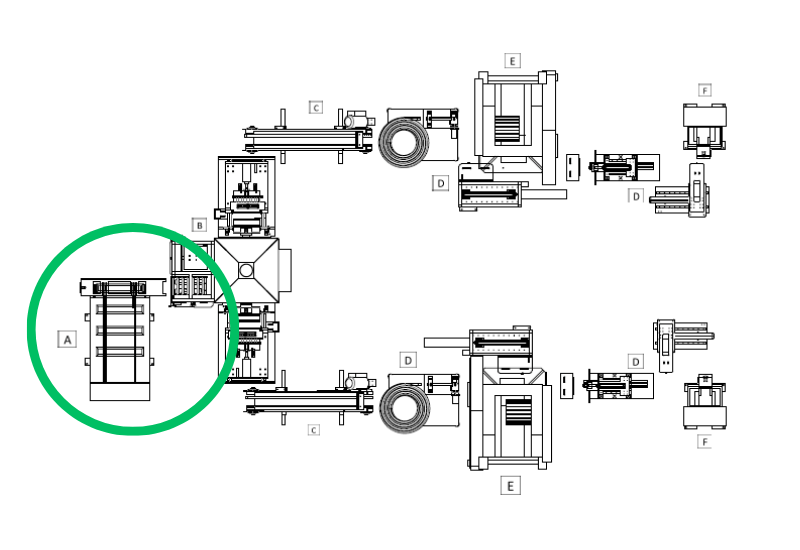

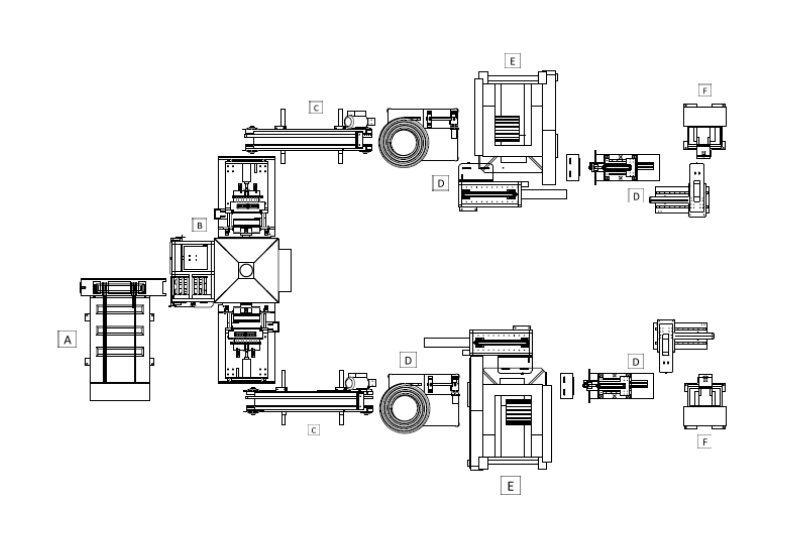

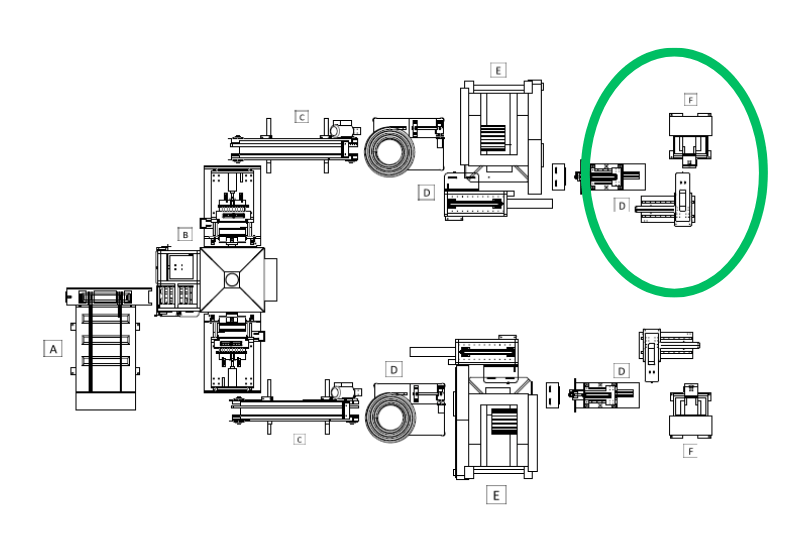

1. General Layout
| Ref | Machine / Component Description |
|---|---|
| A | Lead Ingot Conveyor |
| B | Lead Casting Machine |
| C | Cylinder Conveyor |
| D | Automatic Feeding System |
| E | Press Machine |
| F | Trimming Machine |
2. System Description Breakdown
2-1. Automatic Lead Ingot Feeder

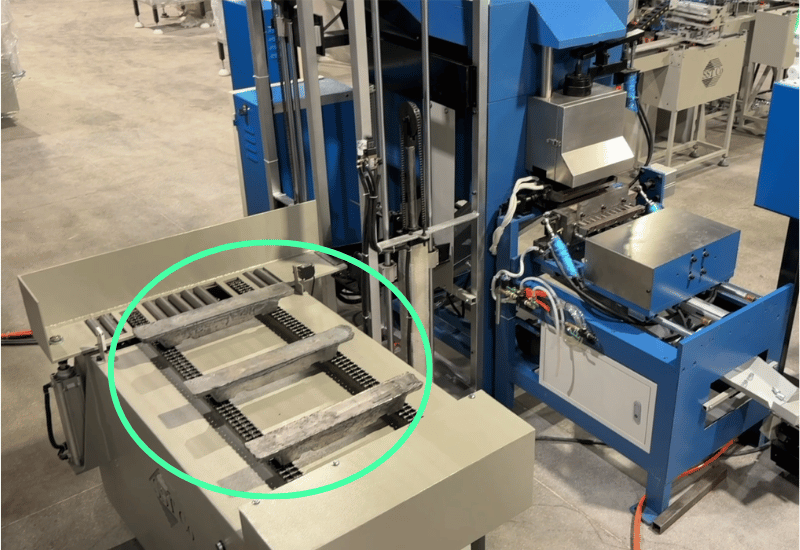

1. 1st Conveyor

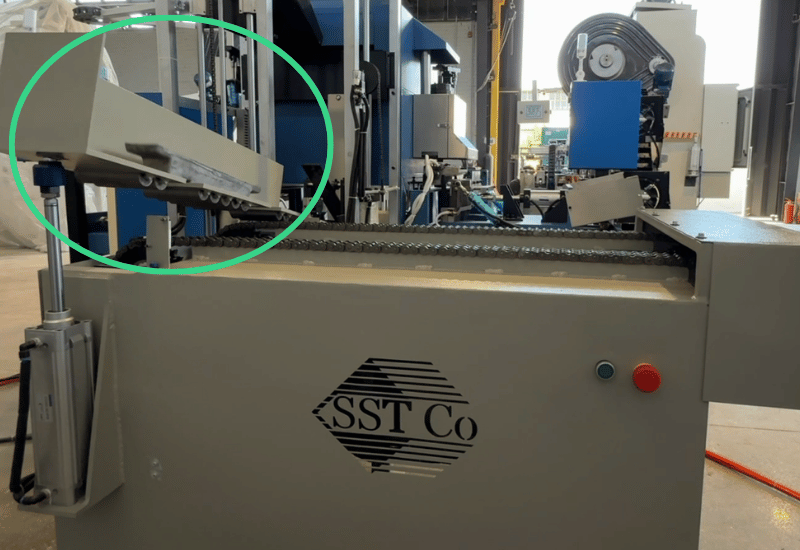

2. 2nd Conveyor

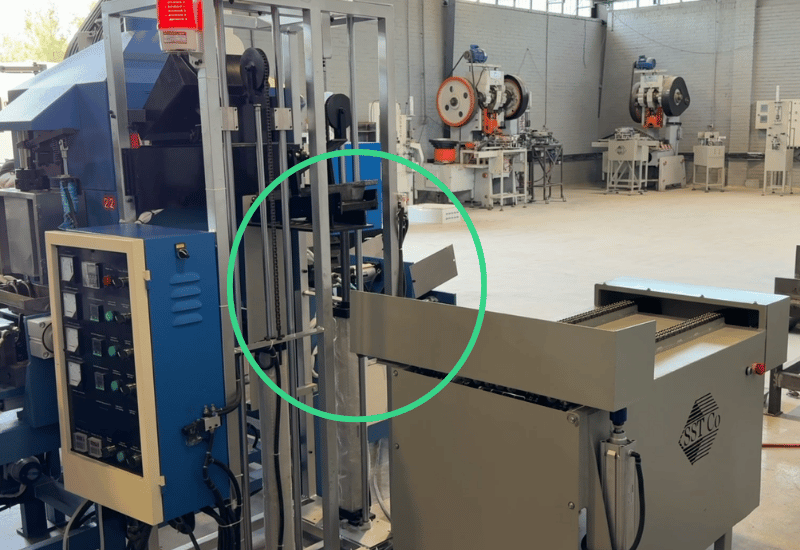

3. Lead ingot elevator

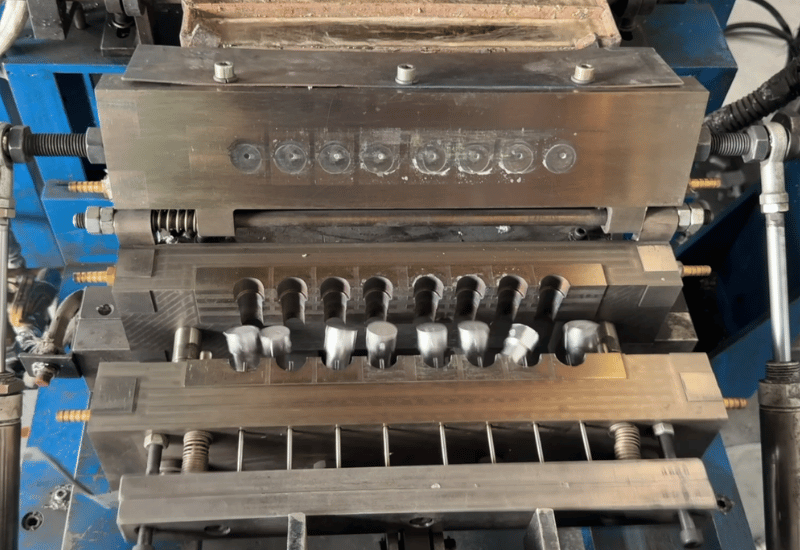

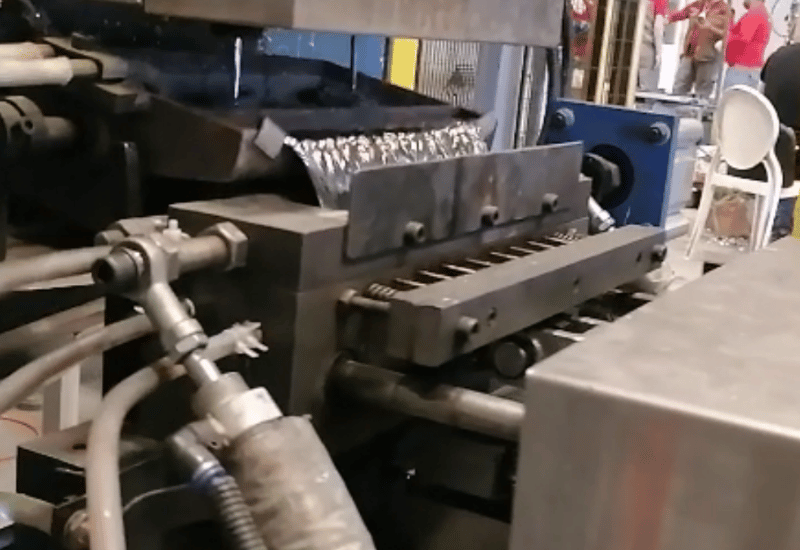

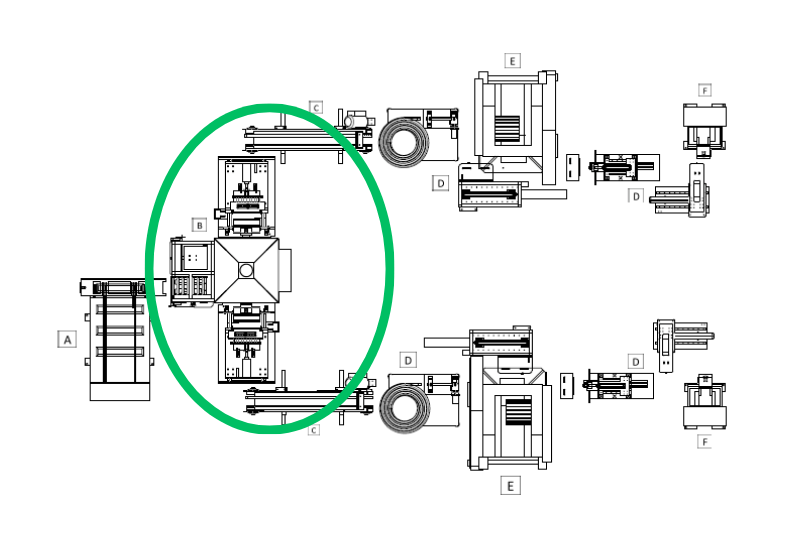

2-2. Automatic Cylinder Casting Machine
1
2
3

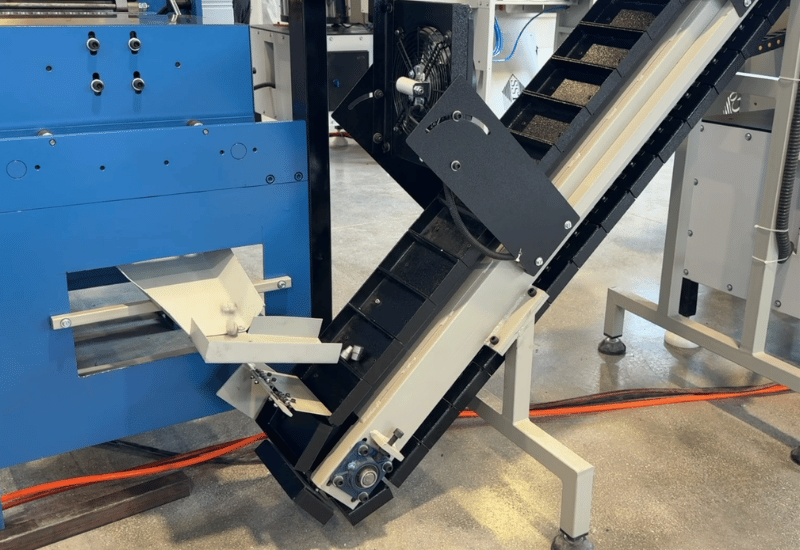

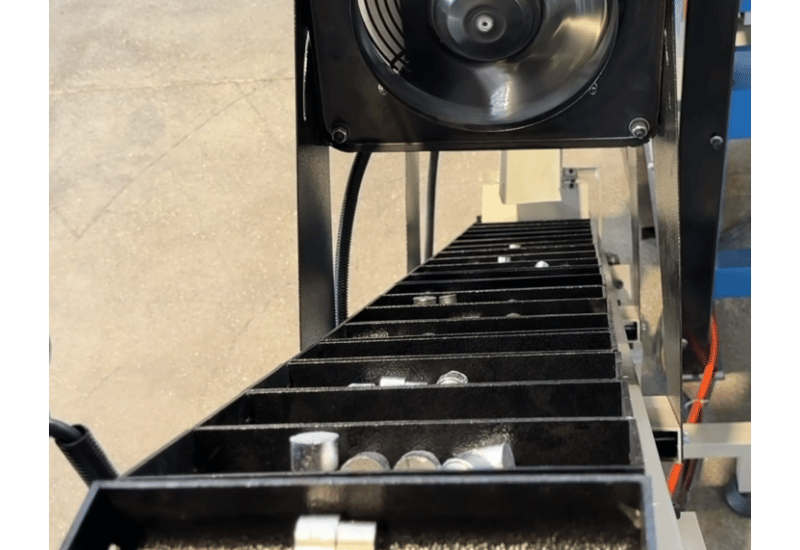

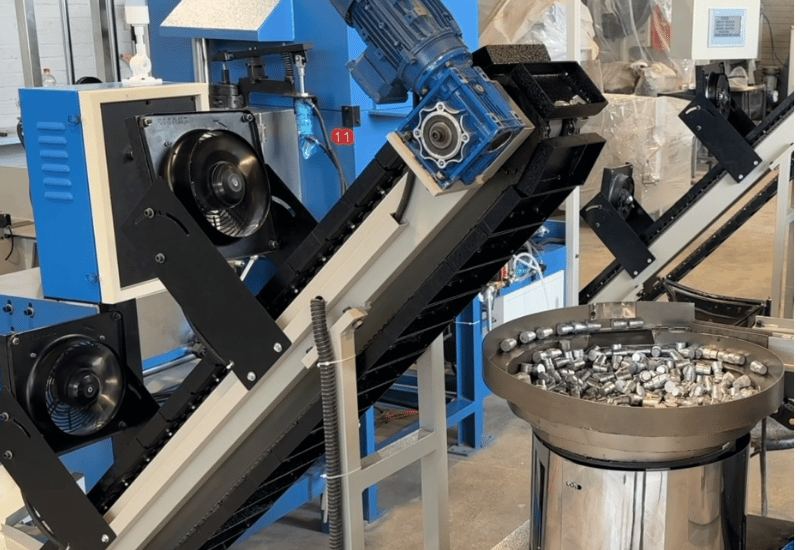

Automatic Conveyor equipped with a cooling system

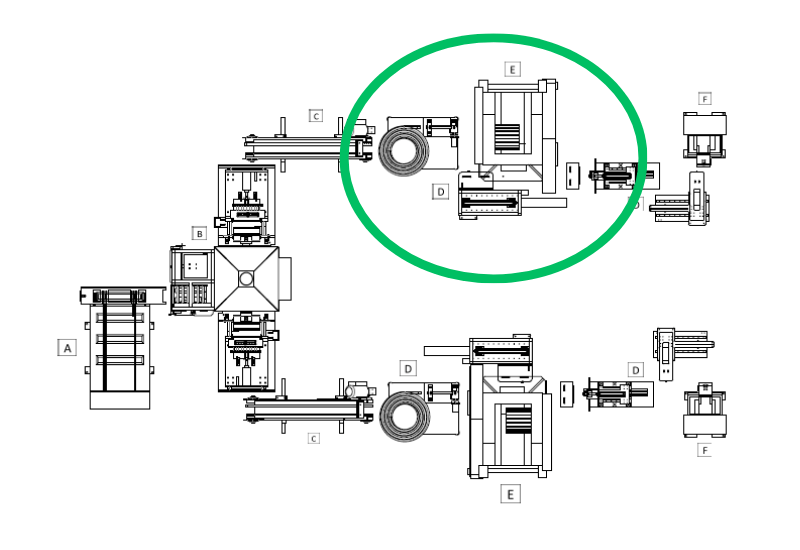

2-3. Automatic Forging Machine

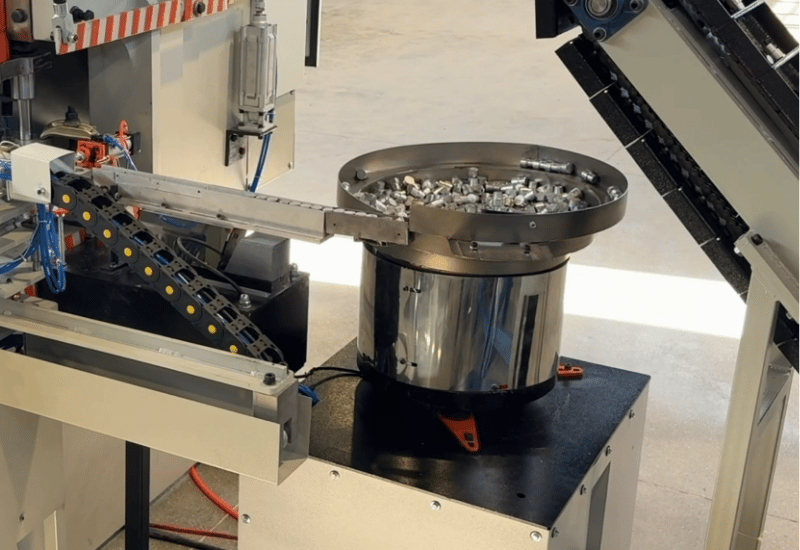

1. Magnet Feeder

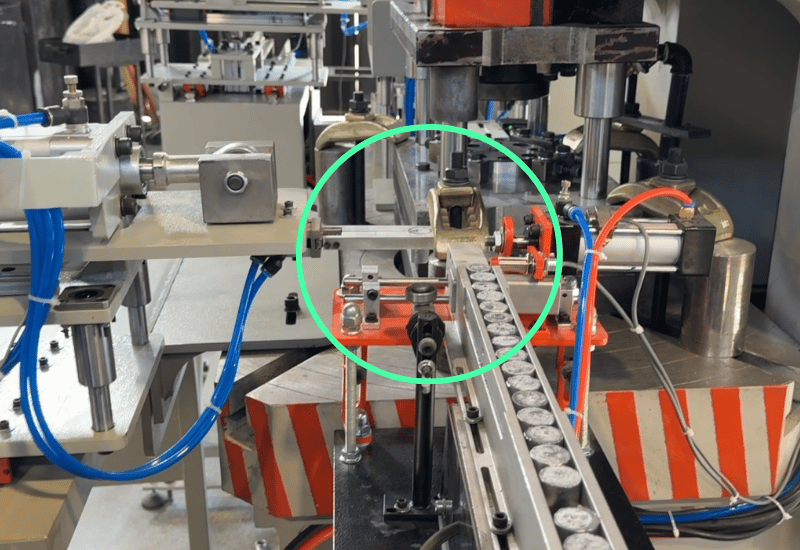

2. Cylinder Loading system

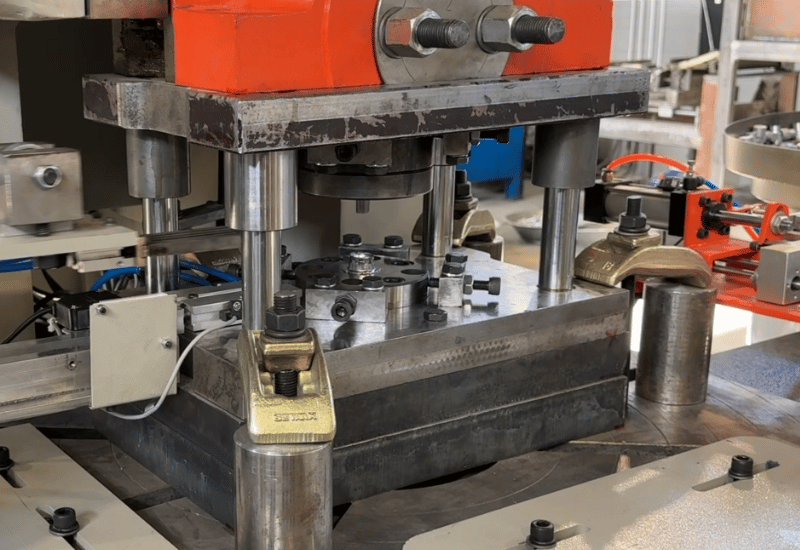

3. Forging Machine

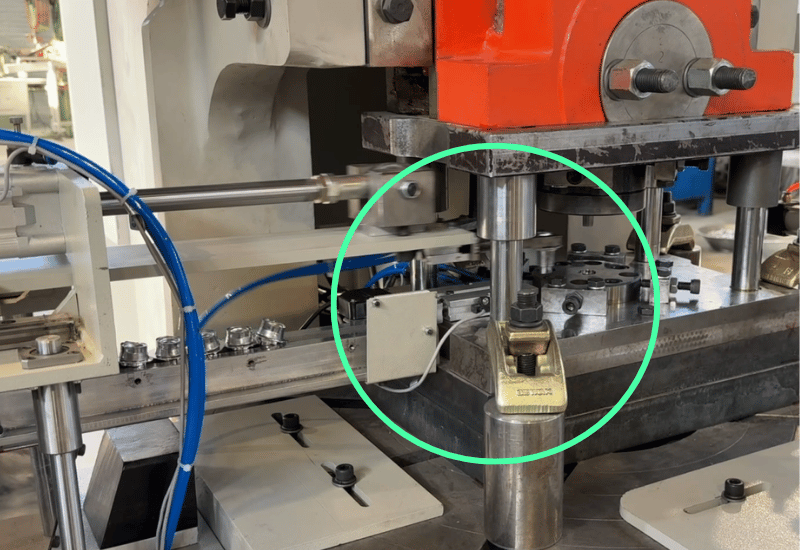

4. Forged part unloading system
2-4. Automatic Trimming Machine

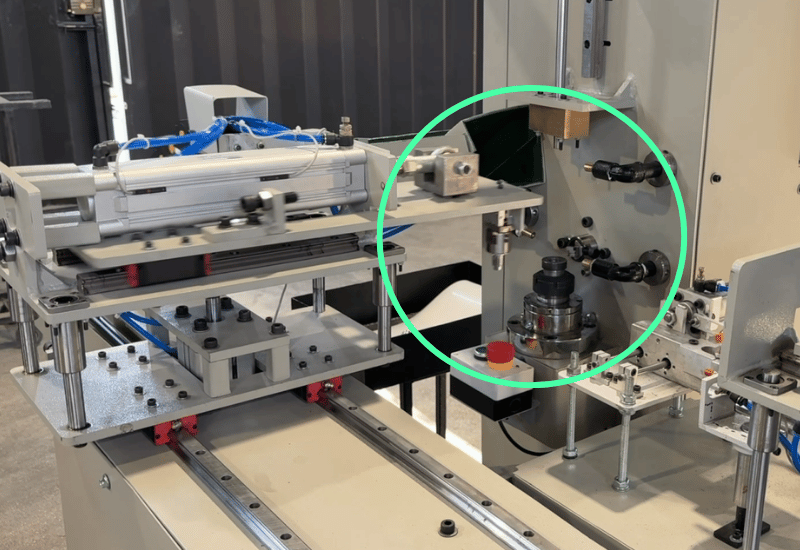

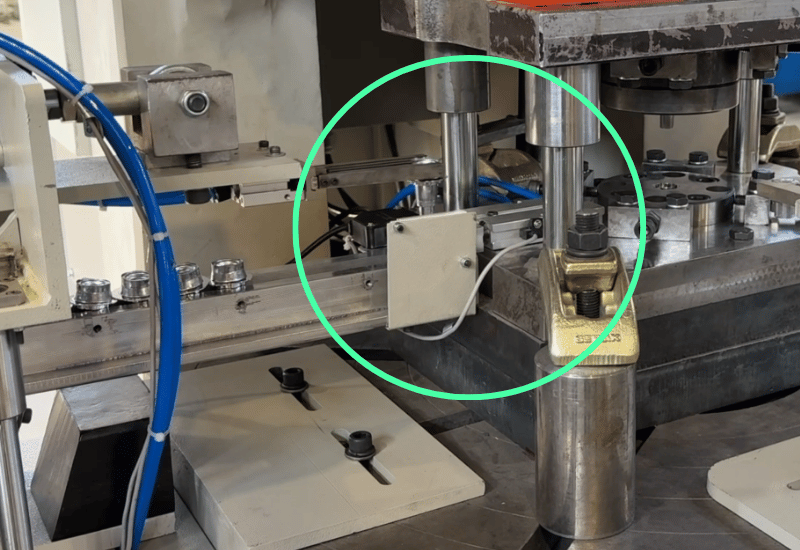

Automatic Unloader for unloading the forged parts from the forging machine

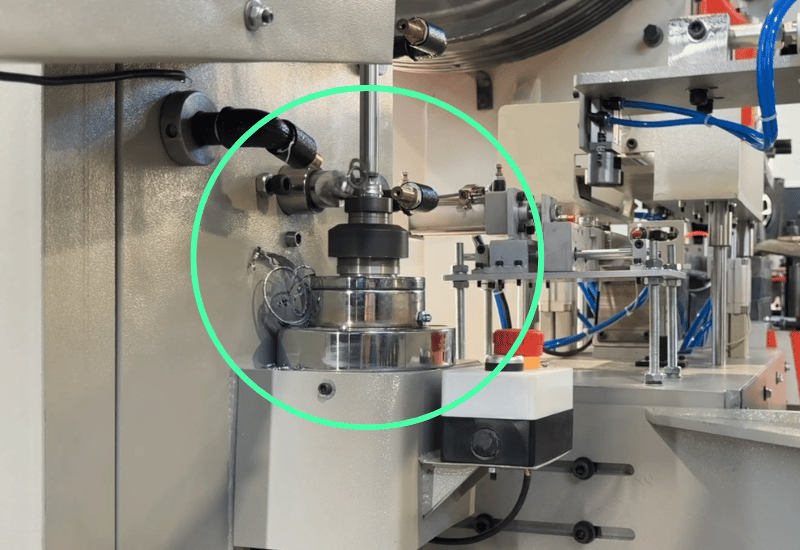

Trimming Loading System

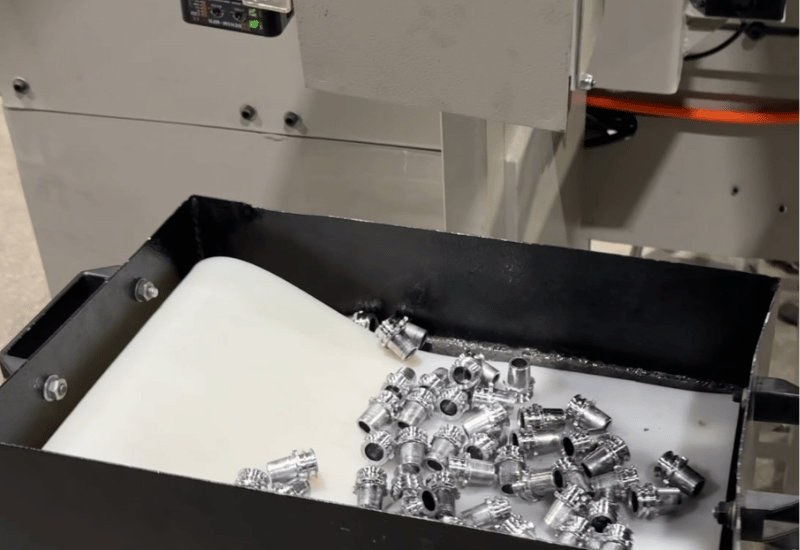

Trimming Machine

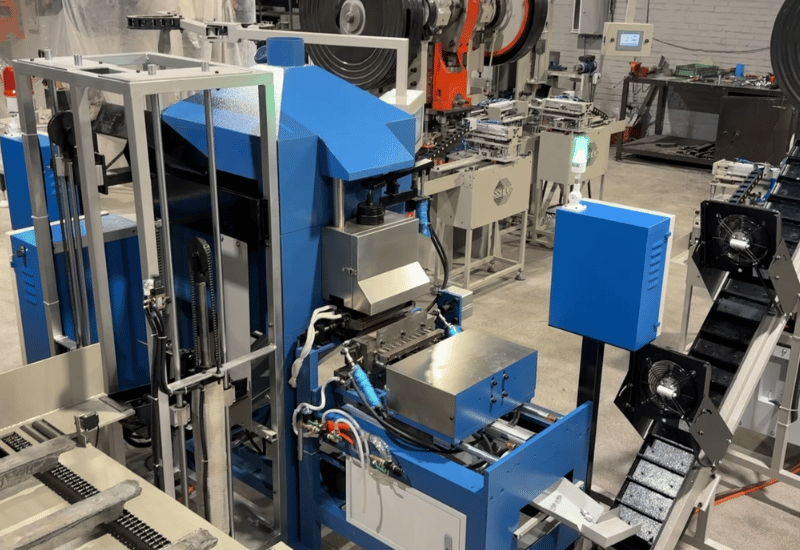

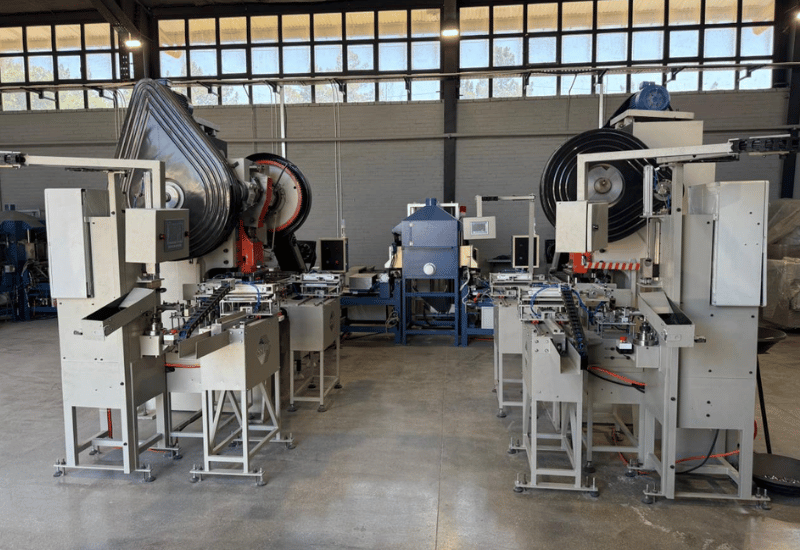

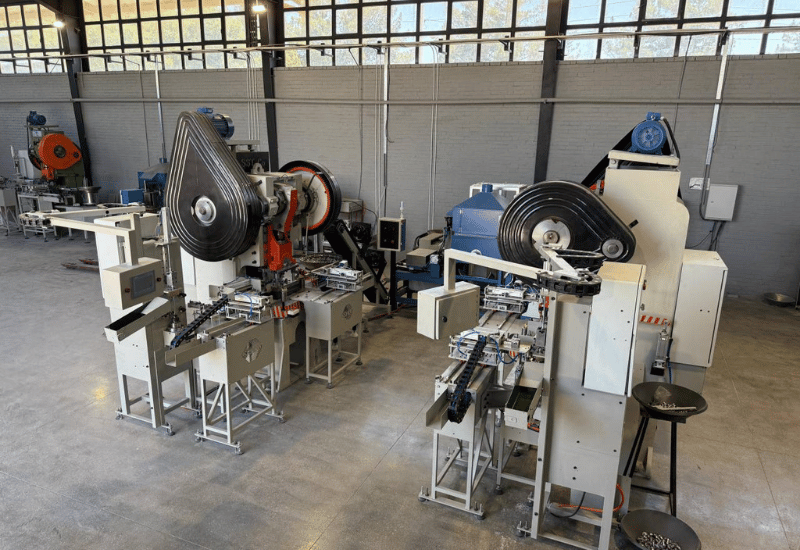

3. Production Line Overview
Final assembly and full operational perspective of the automated terminal making line.
4. Full Operational Video
